Manage asset relationships with attributes

Atlan supports relationships between assets that can include attributes, similar to how assets themselves have attributes. These relationship-level attributes provide additional context and metadata about the connection between assets.

The SDK enables you to create, retrieve, and delete these attributed relationships programmatically.

Relationships with attribute support

The following relationship types support attributes that you can set via the SDK:

Available attributed relationships

1. AtlasGlossaryAntonym
2. AtlasGlossarySynonym
3. AtlasGlossaryReplacementTerm
4. AtlasGlossarySemanticAssignment
5. AtlasGlossaryPreferredTerm
6. AtlasGlossaryRelatedTerm
7. AtlasGlossaryTermCategorization
8. AtlasGlossaryTranslation
9. AtlasGlossaryValidValue
10. AtlasGlossaryIsARelationship
11. CustomParentEntityCustomChildEntities
12. CustomRelatedFromEntitiesCustomRelatedToEntities
13. UserDefRelationship

Add user-defined relationship

7.1.0

This example demonstrates how to add UserDefRelationship between glossary terms. While this relationship type is currently visible in the Atlan UI for glossary terms, you can create any other supported relationship types that have attributes (as listed above) between any asset types using similar steps shown in the snippet below. All these relationships will be persisted in the backend (metastore) even if they're not currently visible in the Atlan UI.

Python Java Raw REST API

from pyatlan.client.atlan import AtlanClient
from pyatlan.model.assets import AtlasGlossaryTerm
from pyatlan.model.assets.relations import UserDefRelationship

client = AtlanClient()

# Create updater for the source term
term1_to_update = AtlasGlossaryTerm.updater( # (1)
    qualified_name="FpWBfqOfP0qZQ6tCpK10n@nrrnNyRABZTc6CEKwHh73",
    name="Policy",
    glossary_guid="55aaaa56-d8cd-4f19-8026-10d511a9b071"
)

# Create reference to the target term
term2 = AtlasGlossaryTerm.ref_by_guid(
  "f558a01a-2e16-440c-ba2d-fed2099e540a"
) # (2)

# Create the user-defined relationship with attributes
udr = UserDefRelationship( # (3)
    from_type_label="Sold by",
    to_type_label="Sells"
)

# Build and assign the relationship
term1_to_update.user_def_relationship_to = [ # (4)
    udr.user_def_relationship_to(term2)
]

# Save the relationship
response = client.asset.save(term1_to_update) # (5)

1. Create an updater for the source term using .updater() with the qualified_name, name, and glossary_guid of the term you want to add the relationship to.
2. Create a reference to the target term using ref_by_guid() or ref_by_qualified_name().
3. Define the relationship by creating a UserDefRelationship object with attributes like from_type_label and to_type_label.
4. Build the relationship using the user_def_relationship_to() method and assign it to the user_def_relationship_to attribute.
5. Save the changes using client.asset.save() to persist the relationship in Atlan.

Coming soon

{
  "entities": [
    {
      "typeName": "AtlasGlossaryTerm",
      "attributes": {
        "name": "Policy", // (1)
        "qualifiedName": "FpWBfqOfP0qZQ6tCpK10n@nrrnNyRABZTc6CEKwHh73",
        "anchor": {
          "typeName": "AtlasGlossary",
          "guid": "55aaaa56-d8cd-4f19-8026-10d511a9b071"
        },
        "userDefRelationshipTo": [
          {
            "typeName": "AtlasGlossaryTerm", // (2)
            "guid": "f558a01a-2e16-440c-ba2d-fed2099e540a",
            "relationshipAttributes": {
              "typeName": "UserDefRelationship", // (3)
              "attributes": {
                "toTypeLabel": "Sells",
                "fromTypeLabel": "Sold by"
              }
            },
            "relationshipType": "UserDefRelationship"
          }
        ]
      }
    }
  ]
}

1. Provide source asset details: Include the required attributes name, qualifiedName, and glossary guid for the term you want to add the relationship to.
2. Reference the target asset: Create a reference to the target term using its guid.
3. Define relationship attributes: Provide the necessary attributes for the UserDefRelationship, including toTypeLabel and fromTypeLabel.

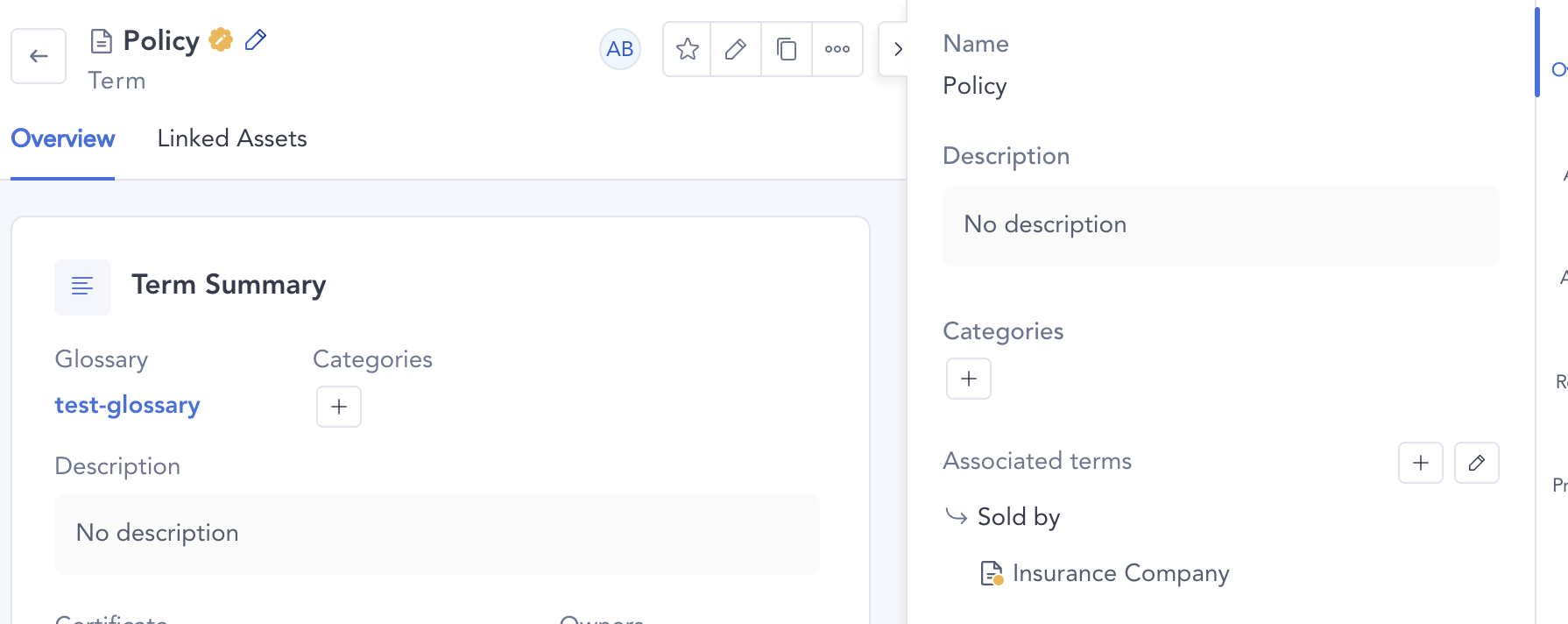

Relationship visibility

User-defined relationships between glossary terms are visible in the Atlan UI. For other asset types, relationships are stored in the backend but may not be visible in the UI until support is added.

Remove user-defined relationship

7.1.0

This example demonstrates how to remove UserDefRelationship between glossary terms. You can use the same approach to remove any attributed relationship type (as listed above) between any asset types using the steps shown in the snippet below.

Python Java Raw REST API

from pyatlan.client.atlan import AtlanClient
from pyatlan.model.assets import AtlasGlossaryTerm

client = AtlanClient()

# Create updater for the source term
term1_to_update = AtlasGlossaryTerm.updater( # (1)
    qualified_name="FpWBfqOfP0qZQ6tCpK10n@nrrnNyRABZTc6CEKwHh73",
    name="Policy",
    glossary_guid="55aaaa56-d8cd-4f19-8026-10d511a9b071"
)

# Remove all outgoing relationships by setting to empty list
term1_to_update.user_def_relationship_to = [] # (2)

# Save the changes to remove the relationship
response = client.asset.save(term1_to_update) # (3)

1. Create an updater for the source term using .updater() with the qualified_name, name, and glossary_guid of the term you want to remove relationships from.
2. Clear relationships by assigning an empty list [] to user_def_relationship_to to remove all existing outgoing relationships.
3. Save the changes using client.asset.save() to persist the removal in Atlan.

Coming soon

{
   "entities": [
     {
       "typeName": "AtlasGlossaryTerm",
       "attributes": {
         "anchor": { // (1)
           "typeName": "AtlasGlossary",
           "guid": "55aaaa56-d8cd-4f19-8026-10d511a9b071"
         },
         "name": "Policy",
         "qualifiedName": "FpWBfqOfP0qZQ6tCpK10n@nrrnNyRABZTc6CEKwHh73",
         "userDefRelationshipTo": [] // (2)
       }
     }
   ]
}

1. Provide source asset details: Include the required attributes name, qualifiedName, and glossary guid for the term you want to add the relationship to.
2. Clear relationships by assigning an empty array [] to userDefRelationshipTo to remove all existing outgoing relationships.

Complete removal

Setting user_def_relationship_to = [] removes all outgoing user-defined relationships from the asset. To remove only specific relationships while keeping others, you would need to retrieve the existing relationships first and reconstruct the list without the unwanted ones.

Retrieve user-defined relationship

7.1.0

This example demonstrates how to retrieve UserDefRelationship between glossary terms. You can use the same approach to retrieve any attributed relationship type (as listed above) between any asset types. While UserDefRelationship is visible in the UI for glossary terms, all relationships are persisted in the backend regardless of UI visibility.

Python Java Raw REST API

from pyatlan.client.atlan import AtlanClient
from pyatlan.model.assets import AtlasGlossaryTerm
from pyatlan.model.assets.relations import UserDefRelationship
from pyatlan.model.query import FluentSearch

client = AtlanClient()

# Build search request for both terms in the relationship
request = (
    FluentSearch()
    .select()
    .where_some(AtlasGlossaryTerm.GUID.eq("f558a01a-2e16-440c-ba2d-fed2099e540a")) # (1)
    .where_some(AtlasGlossaryTerm.GUID.eq("540ee0f6-bb26-4b1a-88b7-31cfc26746b4")) # (2)
    .include_on_results(AtlasGlossaryTerm.USER_DEF_RELATIONSHIP_TO) # (3)
    .include_on_results(AtlasGlossaryTerm.USER_DEF_RELATIONSHIP_FROM) # (4)
    .include_relationship_attributes(True) # (5)
    .to_request()
)

# Execute the search
results = client.asset.search(request) # (6)
assert results and results.count == 2 # (7)

# Access the source term (with outgoing relationship)
source_term = results.current_page()[0] # (8)
if source_term.user_def_relationship_to:
    relationship = source_term.user_def_relationship_to[0]
    print(f"Source term GUID: {relationship.guid}")
    print(f"Relationship type: {relationship.type_name}")
    print(f"Relationship attributes: {relationship.attributes.relationship_attributes.attributes}")

# Access the target term (with incoming relationship)
target_term = results.current_page()[1]
if target_term.user_def_relationship_from:
    relationship = target_term.user_def_relationship_from[0]
    print(f"Target term GUID: {relationship.guid}")
    print(f"Relationship type: {relationship.type_name}")
    print(f"Relationship attributes: {relationship.attributes.relationship_attributes.attributes}")

1. Search for source term: Provide the GUID of the source term (relationship origin - USER_DEF_RELATIONSHIP_TO).
2. Search for target term: Provide the GUID of the target term (relationship destination - USER_DEF_RELATIONSHIP_FROM).
3. Include outgoing relationships: Ensure results include the USER_DEF_RELATIONSHIP_TO attribute.
4. Include incoming relationships: Ensure results include the USER_DEF_RELATIONSHIP_FROM attribute.
5. Include relationship attributes: Set to True to retrieve attributes for each relationship.
6. Execute search: Run the search request using client.asset.search().
7. Verify results: Since we're retrieving two specific terms with relationships, results.count should be 2.
8. Access results: Iterate through results or use current_page()[index] to access specific terms.

Coming soon

{
   "attributes": [
     "userDefRelationshipTo",  // (1)
     "userDefRelationshipFrom" // (2)
   ],
   "dsl": {
     "from": 0,
     "size": 100,
     "aggregations": {},
     "track_total_hits": true,
     "query": {
       "bool": {
         "must": [
           {
             "term": {
               "__superTypeNames.keyword": {
                 "value": "Referenceable"
               }
             }
           }
         ],
         "should": [
           {
             "term": {
               "__guid": {
                 "value": "f558a01a-2e16-440c-ba2d-fed2099e540a", // (3)
                 "case_insensitive": false
               }
             }
           },
           {
             "term": {
               "__guid": {
                 "value": "540ee0f6-bb26-4b1a-88b7-31cfc26746b4", // (4)
                 "case_insensitive": false
               }
             }
           }
         ],
         "filter": [
           {
             "term": {
               "__superTypeNames.keyword": {
                 "value": "Asset"
               }
             }
           },
           {
             "term": {
               "__state": {
                 "value": "ACTIVE"
               }
             }
           },
           {
             "term": {
               "__superTypeNames.keyword": {
                 "value": "Referenceable"
               }
             }
           }
         ],
         "minimum_should_match": 1
       }
     },
     "sort": [
       {
         "__guid": {
           "order": "asc"
         }
       }
     ]
   },
   "relationAttributes": [
     "name"
   ],
   "includeRelationshipAttributes": true // (5)
}

1. Include outgoing relationships: Ensure results include the USER_DEF_RELATIONSHIP_TO attribute.
2. Include incoming relationships: Ensure results include the USER_DEF_RELATIONSHIP_FROM attribute.
3. Search for source term: Provide the GUID of the source term (relationship origin - USER_DEF_RELATIONSHIP_TO).
4. Search for target term: Provide the GUID of the target term (relationship destination - USER_DEF_RELATIONSHIP_FROM).
5. Include relationship attributes: Set to true to retrieve attributes for each relationship.

Relationship direction

• USER_DEF_RELATIONSHIP_TO: Outgoing relationships from this asset
• USER_DEF_RELATIONSHIP_FROM: Incoming relationships to this asset

Accessing attributes

Relationship attributes are nested under relationship.attributes.relationship_attributes.attributes. Make sure to include include_relationship_attributes(True) in your search to retrieve these values.

---
